Walker Alpha Water Separator Housings
Walker Filtration A30006WS to A31500WS Compressed Air Water Separator Housings
Walker Filtration Alpha Series Water Separator Housings are compact and modular
Market leading Compressed Air Water Separator Technology Removes 99% bulk water

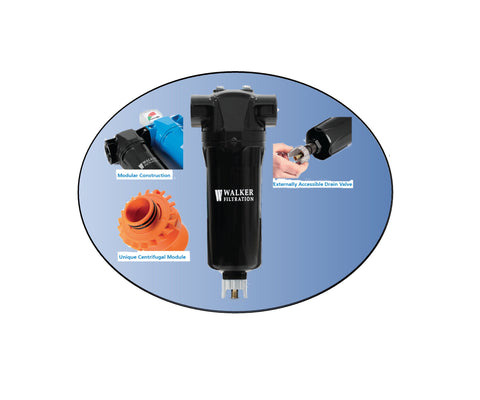

Compressed Air Water Separator Housings from 6 to 1500 SCFM.Water Separator Key Features; Compact Modular Capability, Externally Accessible Drain
Internal Centrifugal Module, Safety Locking Housing and Bowl, No replacement parts necessary

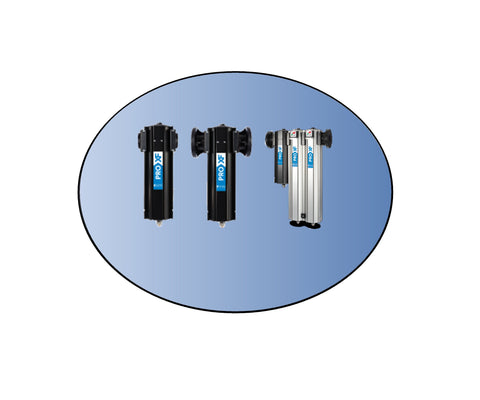

Dusty Filters Supplies OEM Industrial Compressed Air Water Separator Housings for Alpha Series Walker Filtration housings. Click Here for a Specification Data Sheet for our OEM Walker Filtration industrial compressed air water separators. See below for Walker High Flow PROXF Series Housings for flows from 700 up to 3000 SCFM. Consult with us for larger flow Flanged Series Housings up to 15000 SCFM.
Technical notes
1. Water Separators are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A3011WS to
A3051WS and ADVSE16 on models A3052WS to A3301WS. Normally closed operated automatic drain valves (ADVS16C) are available
for low range flow applications (2.5 SCFM, 4.2 Nm3/hr). 300 psig (20.7 barg) range at 248°F (120°C) is available when supplied with a
manual drain valve (MDV25 on models A3011WS to A3051WS and MDVE25 on models A3052WS to A3301WS). Standard filters can
operate at 232 psig (16 barg) at 176°F (80°C).
2. Connecting kits are required to connect Water Separators to models A3011 to A3303 - see price guide.
3. Wall mounting brackets are available for all models - see price guide.
4. Standard threaded connections are NPT to ANSI/ASME B1.20.1. RP (BSP Parallel) to ISO 7-1 and RC (BSP Taper) to ISO 7-1 are also
available upon request.
