Walker Alpha Series E30306 Coalescing Air Filter Elements

  • Sale
  • $66.12
Shipping calculated at checkout.

Walker A30006 6 SCFM Compressed Air Alpha Filter Housings

E30306 Compressed Air Odor Removal, Removal of Oil Aerosols and Particulate Removal

  • E30306
  • Compressed Air Filter Grades Comes in 8 Grades

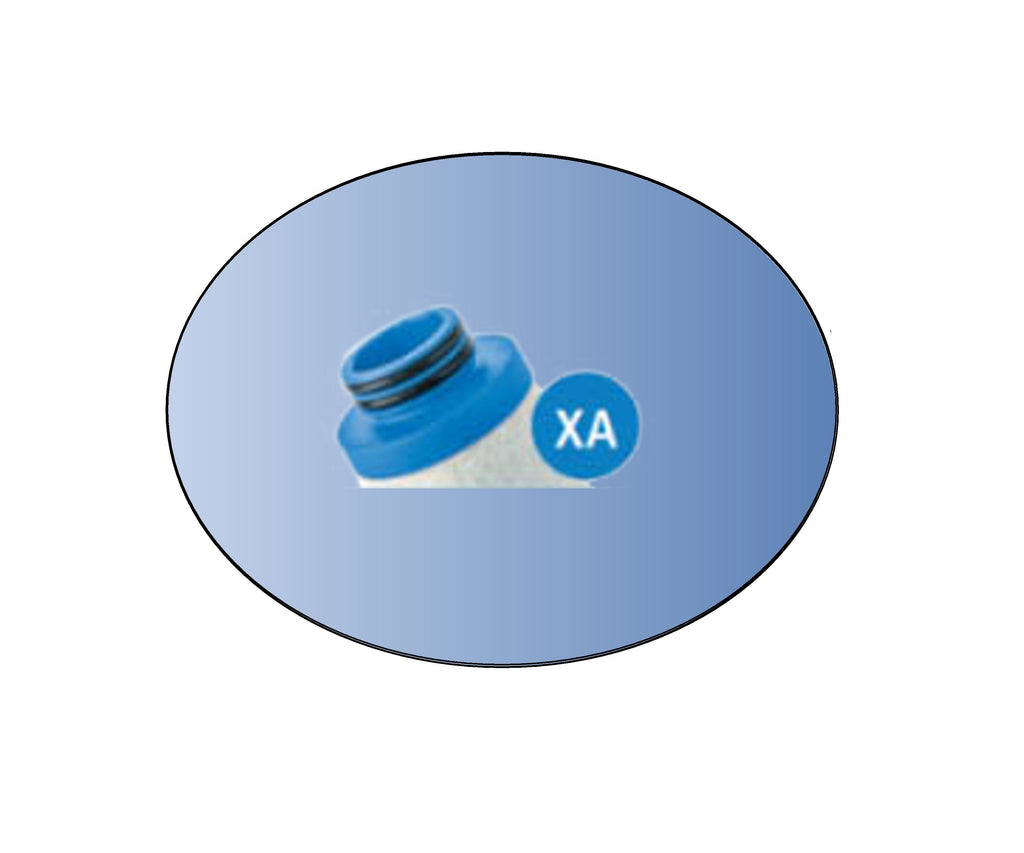

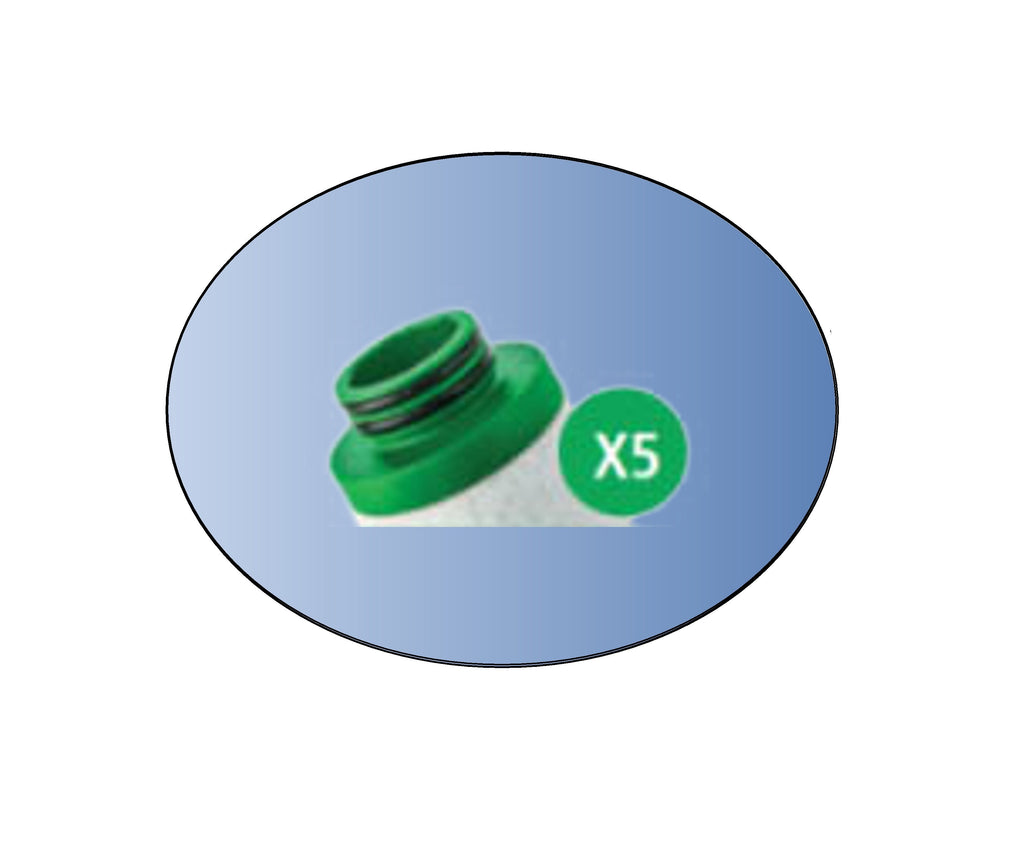

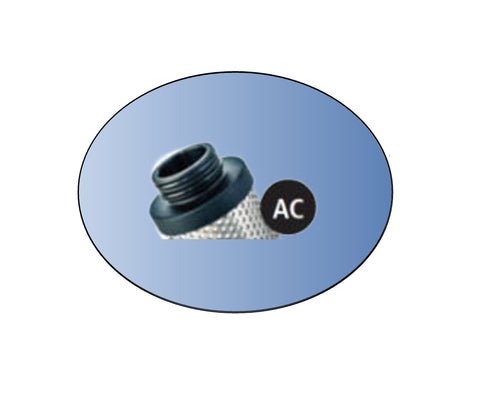

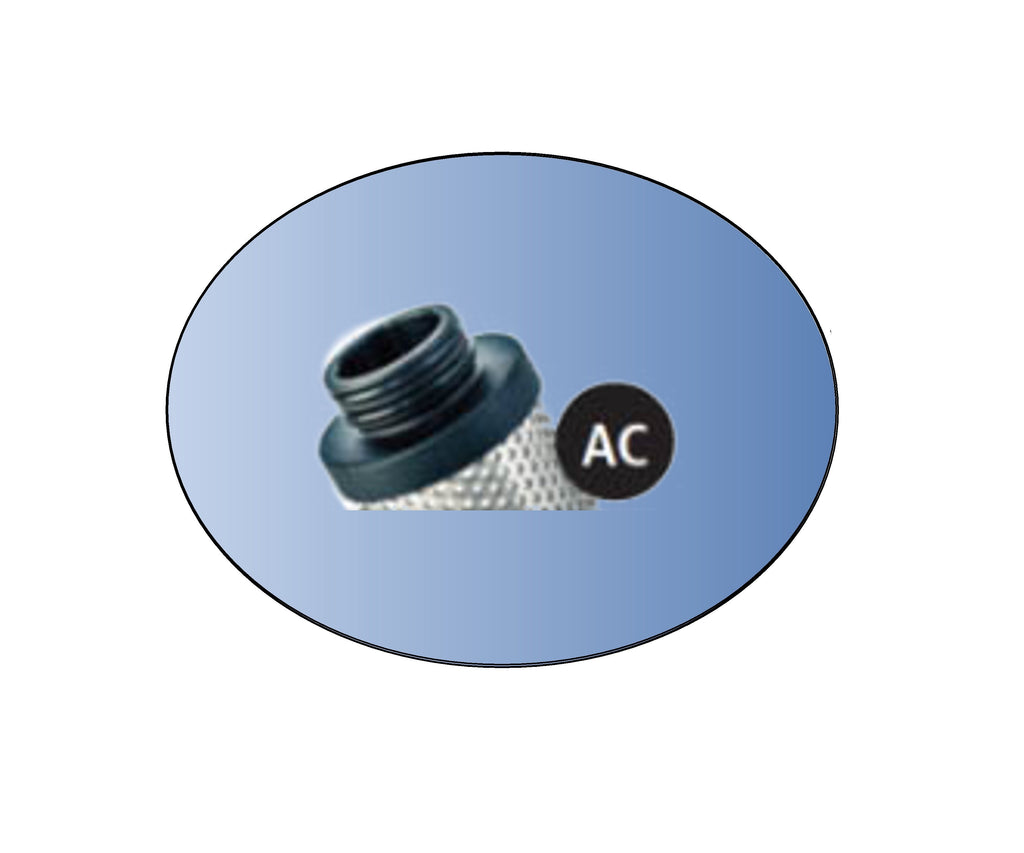

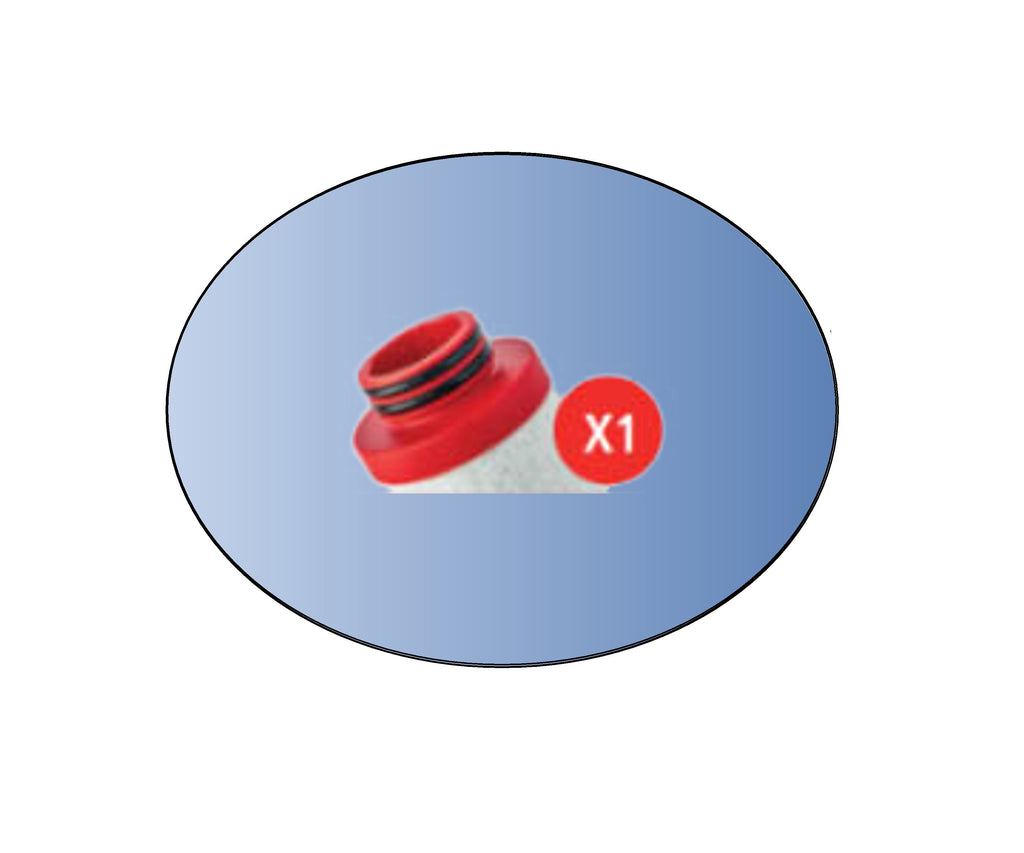

  • X5 5 micron, X1 1 micron, XA .01 micron oil, and AC .01 micron adsorber
  • RX5 5 micron, RX1 1 micron, RXA .01 micron oil, and RAC .01 micron adsorber
  • Standard X5, X1, XA and AC elements are used in Alpha and Alpha HP Housings
  • Standard in to out flow elements X5, X1, XA and AC
  • RX5, RX1,R XA and RAC are used in Alpha Dust and Alpha HP Housings
  • Alpha Reverse Flow Dust Filters are used downstream of regenerative compressed air and gas dryers
  • Reverse Flow out to in elements RX5, RX1,R XA and RAC
  • Key Features; Compact Modular Capability, Externally Accessible Drain, Color Coded Elements for easy grade identification

    • Color Coded for easy accurate element replacement. Dusty Filters Supplies Alpha, Alpha Dust and Alpha HP Elements for A30006 A30015 A3011 A3021 20HP0006 20HP0015 Housings.

    Dusty Filters Supplies Original OEM E30306 filter elements.

    Filter elements should be changed every 12 months / 8000 hours (whichever comes first). Activated carbon filter elements should be changed every 6 months.

    All Housings with RX5, RX1, RXA, or RAC Elements will be Reverse Flow Alpha Dust Housings
    and equipped with manual drain valves

    All Housings with X5, X1,XA, or AC Elements will be fitted with normally open float operated automatic drain valves

    Other Filters

    Walker A30050 Housing with Filter Element


    Walker A30025 Housing with Filter Element

    Walker A30070 Housing with Filter Element

    Contact Dusty Filters for your compressed air filter housings. Knowledgeable Help is available to assist!
